Doppler Current Meter JLN-652

Features

The new JLN-652 Doppler current meter integrates acompelling combination of function and features, packedinto a compact space-saving design, enabling quick andaccurate acquisition of speed and tidal current data.

3D twist mode

You can view the current direction and speed in real time with the twist mode. With this advanced feature, an operator is able to assess current speed and direction, enhancing the timing on when to deploy the nets in the water. Naturally, the twist display mode is accompanied with a wide range of information, such as current speed range, depth range, temperature history from external sensor and more.

Up and down current

JRC engineers listened closely to feedback given by captains and realized yet another unique function in this class of current meters. The JLN-652 is able to accurately measure up and down current, particularly useful to predict the sinking ratio of your nets by following the natural motion of the underwater current.

50 independent measuring layers at deep current

The JLN-652 Doppler current meter has the ability to process and display continuous tidal currents of 50 independent measuring layers down to maximum 200 meter depending on sea condition. To simplify matters, the user only has to set five depths layers (A, B, C, D, E), of which each layer is measured in four directions. The 50 layers are automatically set relative to depth which has been indicated. The user can select the depth of each layer, showing different information. You can also select bearing*1 displayed as North-up (with true north at the top of the display) and Head-up (with bow at the top of the display).

Automatic speed relative to bottom

Normally run automatically, the new JLN-652 allows bottom tracking with depths up to approximately 250*2 meters, measuring direction and speed relative to the sea bottom. If sea bottom becomes too deep, it automatically switches to water tracking mode or through GPS mode, depending on user selection.

Bottom current tracking

The bottom current layer (E) has the ability to automatically shift and display the current close to bottom following the contours of the sea bottom. This is of great help for the operator when fishing in areas with frequently variable depth.

*1 : Heading input necessary
*2 : Actual depth value depend on sea and bottom condition

Operation

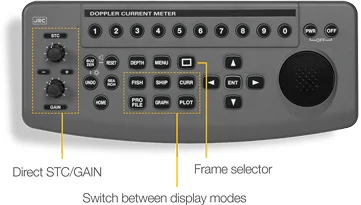

Dedicated keyboard

The new JLN-652 allows you to carry out all operations simply by using the keyboard. The layout has a full complement of keys, including direct STC and GAIN, to adjust noise under surface of the water level and receiver sensitivity respectively. The keyboard also has one-touch menu keys to access different display modes instantly as well as a special frame-selector to navigate quickly through a variety of menu items on display.

Fish finding

You can view fish echoes in four-directions, two-directions ahead, or in any one direction, allowing for easy fish tracking. Just as any typical fish finder, you can set the display to present fish echo and seabed condition simply by adjusting the sensitivity.

Alarms

There is a wide range of alarms available on the JLN-652. With all alarms, for example, when depth becomes shallower than the parameter set, a warning message pops up, allowing the operator to take action, contributing to safer navigation and more efficient fish finding.

High resolution display

The Doppler current meter not only measures data with unmatched accuracy but also features a high resolution output of 1024 by 768 pixels (XGA) which provides excellent and efficient tidal analysis.

Black box configured

The JLN-652 consists of a display (option), processor and keyboard, allowing for a flexible installation approach in confined spaces. For those who prefer to specify their own display, the JLN-652 allows you to choose what type and size of display to connect to the unit, as long as it supports XGA.

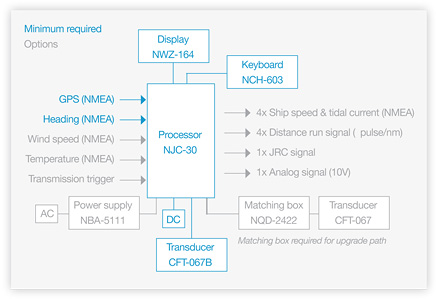

System

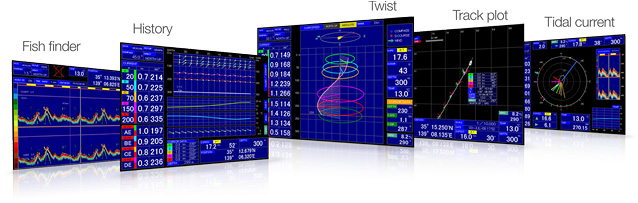

Display modes

This Doppler current meter has 16 comprehensive and easily readable display modes for efficient tidal analysis. With our dedicated keyboard you can navigate through all common used tasks effortlessly.

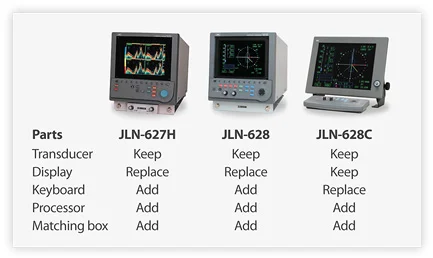

Upgrade path

Our standard scope of supply has been set as a minimum configuration. This allows ease of upgrading from previous models (see left). In the case of a new installation, simply select the transducer and installation accessories from the option list.

Easy interfacing

The new Doppler current meter integrates two-way interfacing, allowing you to easily connect a wide range of additional (NMEA) navigation equipment. Up to 1000 memory points of current and track data can be saved on USB memory. (USB not included).

In the box

  • Processor
  • Keyboard
  • Manuals
  • Spare parts

Options

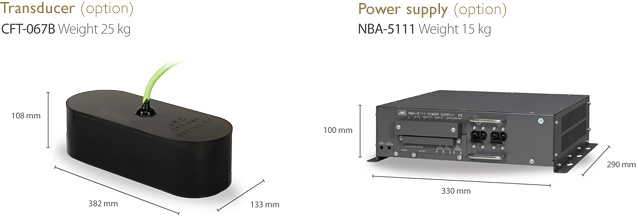

Transducer element (25m cable attached) CFT-067B
Stuffing tube (iron hull/FRP hull) MPJD30076/MPJD30078
Transducer with stuffing tube NKF-779
Transducer with stuffing tube + iron tank NKF-780

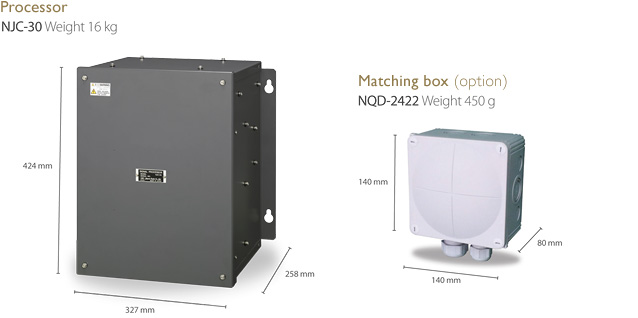

Matching box NQD-2422

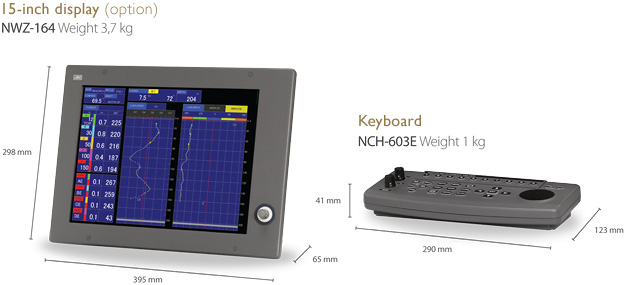

15-inch display NWZ-164
Bracket 15-inch display MPBX42944
Sun shade 15-inch display MPOL30369
10-inch display NWZ-211
Keyboard ext. cable (10m) CFQ-6999
Power supply NBA-5111

Specs

Model JLN-652
Measuring method 2-axis four beam pulse Doppler
Frequency 240 kHz
Resoluton 1024 by 768 pixels (XGA)
Power supply 21.6 to 31.2V DC (100 to 230V AC option), Power consumption: <270VA
Ambient conditions Temperature: -15 to 55°C, Relative humidity: 0% to 93% non-condensing
Current measurement
Current speed range 0 to 10 kn (accuracy ± 2% rms or 0.2 kn, whichever is greatest)
Current direction display All surroundings 360° and numerical values with 32 bearing points
Current layers Maximum: 50 layers (numerical data readout from 5 pre-selected layers)
Current depth 2 to 30 m (in shallow sea mode), 12 to 100 m (in standard mode), Maximum: up to 200¹ m
Bottom measurement Minimum depth: 5 m, Maximum depth: 350¹ m
Depth setting 2 to 500 m
Current reference Doppler or GPS
Ship speed measurement
Fore/aft range -10 to 40 kn (accuracy ± 1% rms or 0.1 kn, whichever is greatest)
Port/starboard range -10 to 10 kn (accuracy ± 1% rms or 0.1 kn, whichever is greatest)
Measurement speed Ground speed: 5 to 250 m, Maximum: up to 350¹ m,
Water speed: more than 10 m (both display simultaneously)
Distance run 0 to 99,999.99 NM (accuracy ± 1% rms or 0.1 kn, whichever is greatest)
Auto shift bottom tracking Yes
Main performance
Function Measuring current, ship speed, depth, fish finder, track plotting, graph display, profile display, self test, alarm function
Display modes Current, ship, plot, graph, fish, profile
Alarms Current speed, ship speed, depth, trip, timer, water temp, wind speed
Interfacing
NMEA input
(v1.5 to 3.01)
Bearing: HDT, VHW, HDM, HDG, THS; Speed; RMC, VTG;
Lat/Lon: RMC, GGA, GLL; Temperature: MTW; Wind: MWD, MWV
NMEA output
(v1.5 to 3.01)
VDVBW, VDVLW, VDVHW, VDDBT, VDDPT, VDCUR, PJRCL (ship speed and tidal current)
External trigger input Receiver blocking by external transmission trigger
Distance output 4x log pulse (200 pulse/NM)
JRC output JRC format (for current data output)
Memory data output USB/CF card (up to 1000 memory waypoints of current and track data can be saved)

1. Actual depth values depend on sea and bottom conditions
